Reference

Eta Jupyter Kernel (eta_jupyter)

This page documents the current local kernel workflow and the notebook-facing runtime behavior.

Build

Jupyter is part of the required dependency stack. Configure and build eta_jupyter (or eta_all):

cmake -S . -B out/msvc-release
cmake --build out/msvc-release --target eta_jupyter -j 14

Install kernelspec

eta_jupyter now supports runtime installation:

eta_jupyter --install --user
eta_jupyter --install --sys-prefix
eta_jupyter --install --prefix C:\eta\install

Supported flags:

• --install: write a kernel.json for the current eta_jupyter executable.
• --user: install into the user Jupyter data directory.
• --sys-prefix: install under the active Python/Conda prefix (CONDA_PREFIX, VIRTUAL_ENV, or PYTHONHOME).
• --prefix <path> / --prefix=<path>: install under an explicit prefix.

Rich display

Execution now publishes MIME bundles (with text/plain fallback) for:

• application/vnd.eta.tensor+json
• application/vnd.eta.facttable+json
• application/vnd.eta.heap+json
• application/vnd.eta.disasm+json
• application/vnd.eta.actors+json
• application/vnd.eta.dag+json
• application/vnd.eta.tensor-explorer+json
• application/vnd.vegalite.v5+json
• text/html
• text/markdown
• text/latex
• image/svg+xml
• image/png

Notebook helpers are available from std.jupyter:

(import std.jupyter)
(jupyter:html "<b>Hello</b>")
(jupyter:tensor (torch/zeros '(3 3)))
(jupyter:table some-fact-table)
(jupyter:plot 'line '(1 2 3) '(2 4 8))

Notebook screenshots

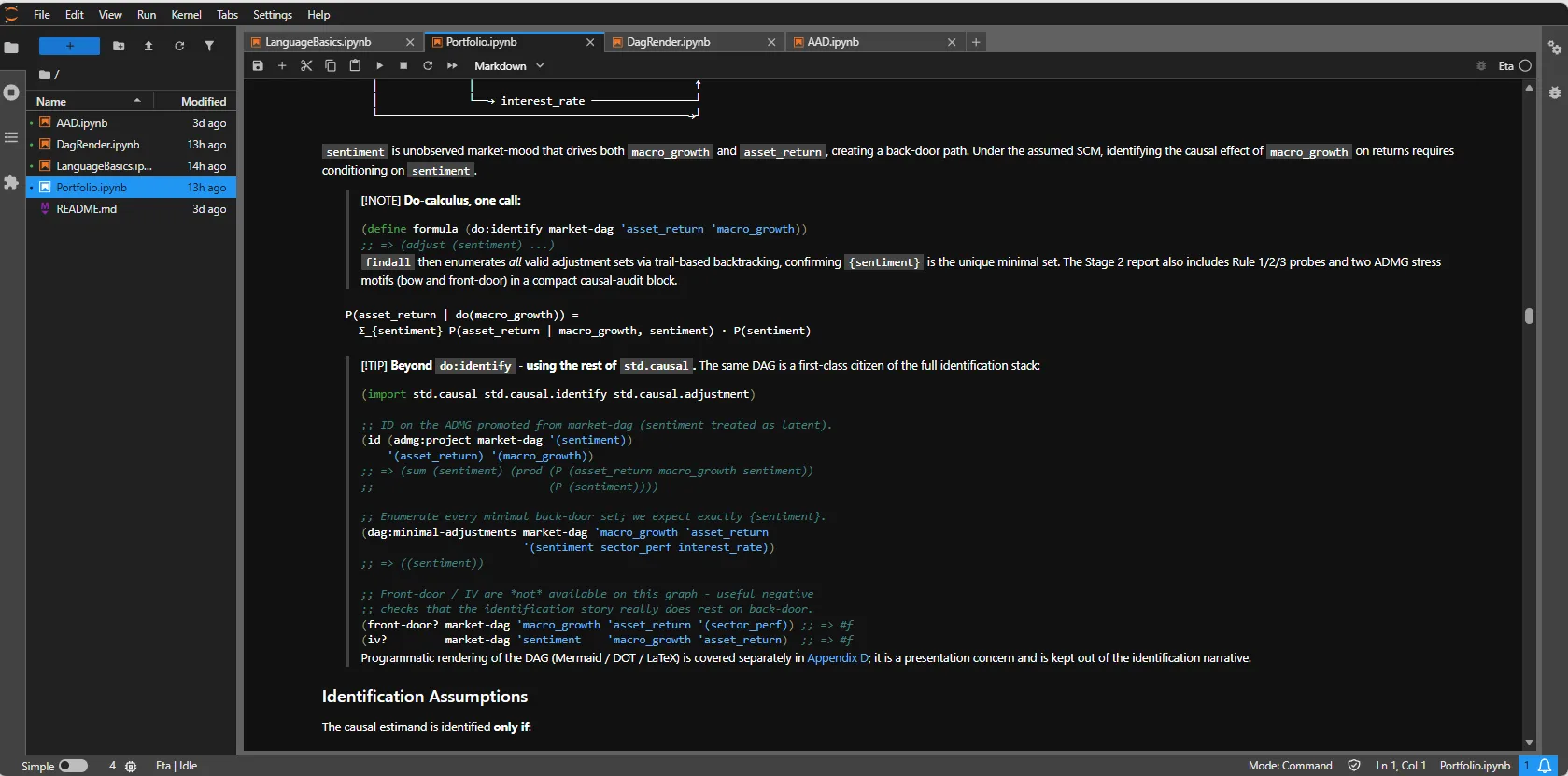

Generic notebook flow

Basic Eta notebook execution and cell output:

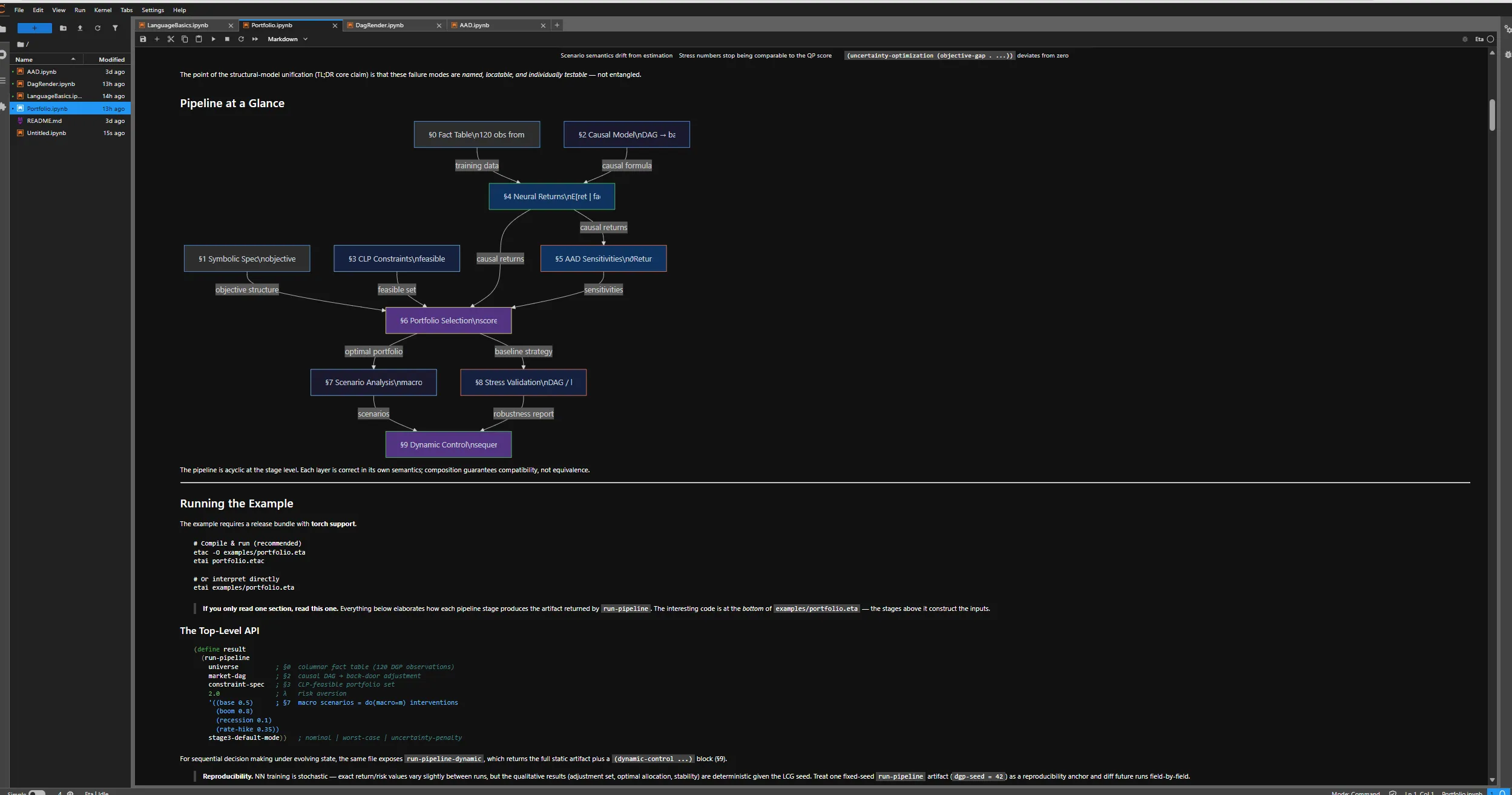

Rich rendering

Example of notebook-side rich rendering output:

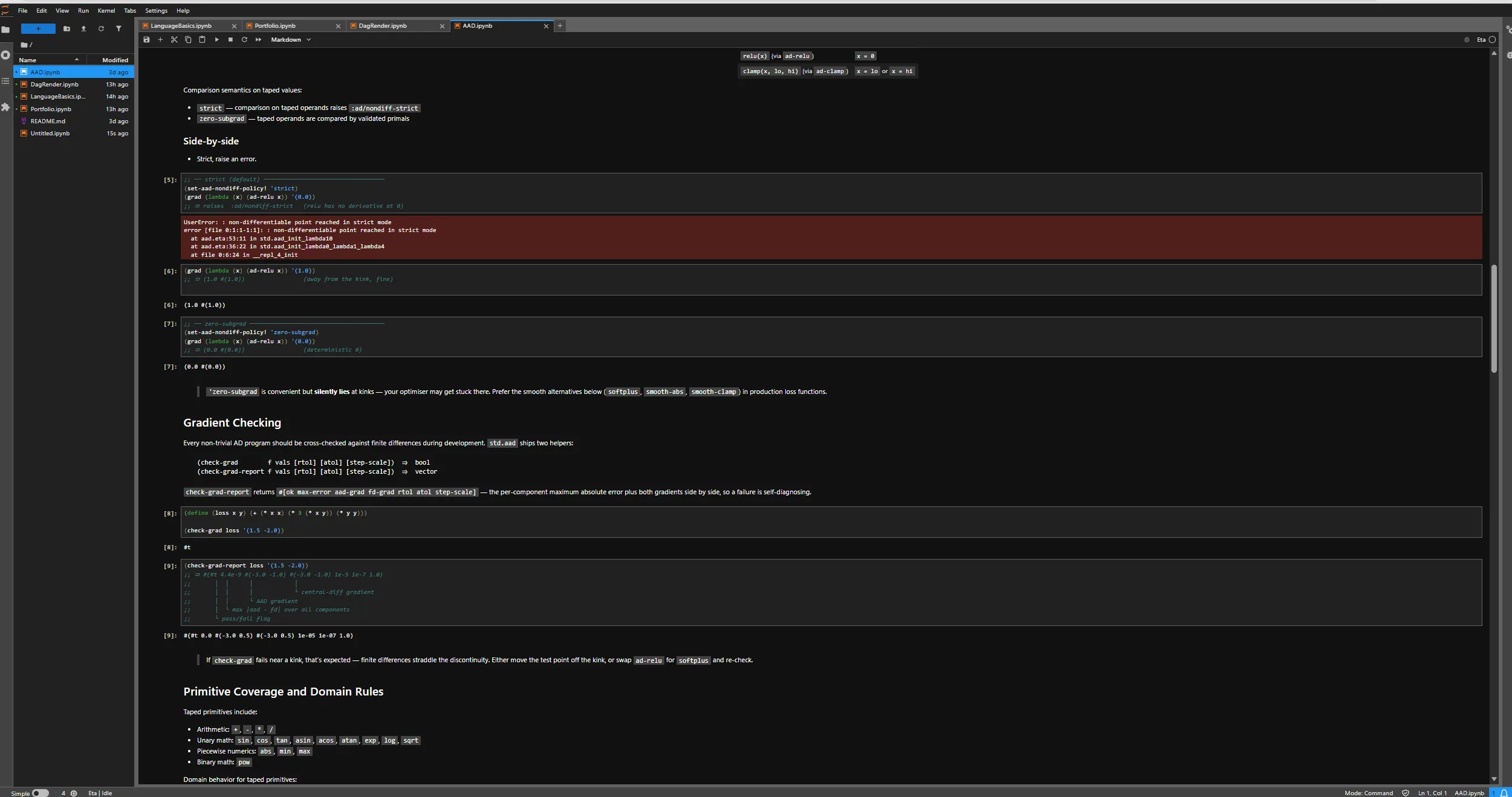

Error reporting

Example of runtime error reporting in a notebook cell:

Comm widgets

std.jupyter now includes comm-backed helpers for live debug widgets:

• (jupyter:heap)
• (jupyter:disasm query)
• (jupyter:actors)
• (jupyter:dag graph) where graph is either:
  • graph-json shape: ((nodes ...) (edges ...))
  • edge-list shape: ((a -> b) (b -> c) ...)
• (jupyter:tensor-explorer tensor-json)

When the labextension is not installed, these helpers still render an HTML fallback snapshot.

Magics

The kernel supports line and cell magics in execute_request_impl:

• %time EXPR
• %timeit EXPR
• %bytecode EXPR
• %load PATH
• %run PATH
• %env [KEY[=VALUE]]
• %cwd [PATH]
• %import MOD
• %reload MOD
• %who
• %whos
• %plot EXPR
• %table EXPR
• %%prof [sample|trace] [--mode sample|trace] [--hz N] (cell magic)
• %%trace (cell magic)

Profiling cell magic

%%prof profiles exactly one cell and emits both:

• The normal cell result.
• A profiling report (text/plain) plus inline flamegraph (text/html).

Examples:

%%prof
(+ 1 2)

%%prof trace
(fib 12)

%%prof --mode=sample --hz=4000
(workload)

For format and workflow details, see Profiling.

Interrupts and actor output routing

• The kernel installs a signal-driven interrupt pump (SIGINT/SIGTERM) that calls Driver::request_interrupt() on the active interpreter.
• VM interrupt checks remain in the opcode hot loop, so runaway evaluation can be interrupted without restarting the kernel.
• spawn-thread captures the active stream sinks at spawn time. Output from the spawned actor therefore continues to route to the originating cell stream even after the cell has returned.
• spawn child processes do not inherit notebook stream sinks; use the actor comm widget for process/thread state visibility.

Kernel state model

The kernel uses one shared Driver per process. Cell re-execution and redefinitions follow standard Jupyter semantics.

Optional startup configuration is loaded from kernel.toml:

• ETA_KERNEL_CONFIG (explicit file path), or
• ~/.config/eta/kernel.toml (plus platform fallbacks).

Example:

[autoimport]
modules = ["std.io", "std.logic", "std.stats"]

[display]
table_max_rows = 1000
tensor_preview = 8
plot_theme = "light"

[interrupt]
hard_kill_after_seconds = 30

std.io is always auto-imported.
